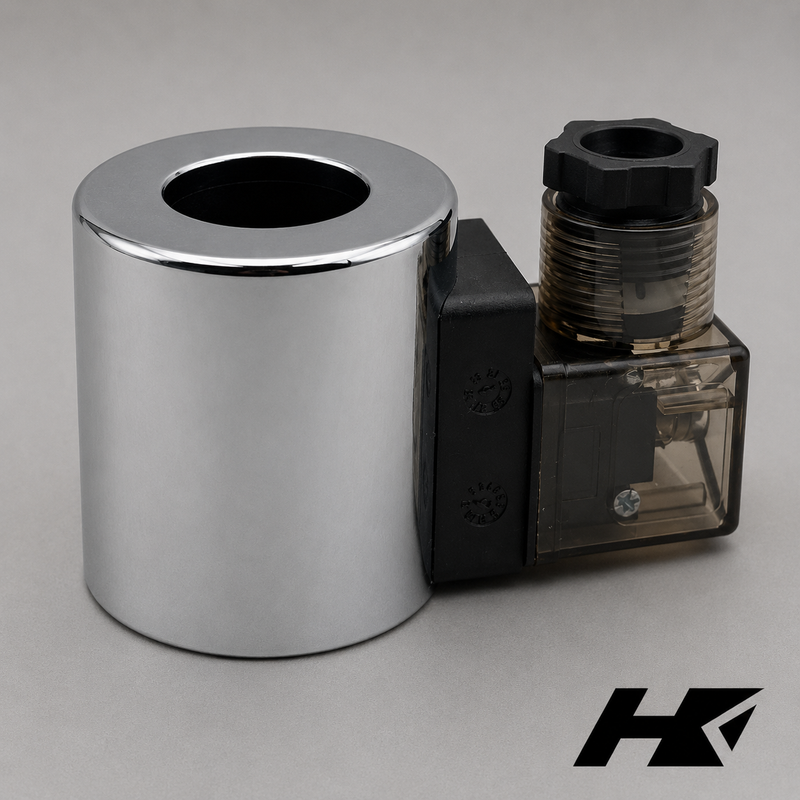

Replacement Solenoid Coil for CETOP 3 & CETOP 5 Valves – DC & AC
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Hydraulic Konnect Replacement Solenoid Coil for CETOP 3 & CETOP 5 Valves
Available Options:
- CETOP 3 – 12VDC
- CETOP 3 – 24VDC
- CETOP 3 – 110VAC
- CETOP 3 – 240VAC
- CETOP 5 – 12VDC
- CETOP 5 – 24VDC
- CETOP 5 – 110VAC
- CETOP 5 – 240VAC
The Hydraulic Konnect replacement solenoid coil is designed for use with CETOP 3 and CETOP 5 hydraulic directional control valves. It provides reliable electromagnetic actuation for hydraulic systems used in industrial machinery, hydraulic power units, mobile equipment, agricultural machinery and general fluid power applications.
Available in both DC and AC supply options, these replacement coils allow a damaged, burnt-out or faulty coil to be replaced without replacing the complete hydraulic valve assembly.
All coil options include a matching DIN plug with LED indicator.
Important for AC models: The 110VAC and 240VAC versions are supplied with a matched rectifier DIN plug with LED indicator. The supplied rectifier plug forms part of the AC coil assembly and must be used when operating the AC coil from the specified AC supply. Do not bypass the supplied rectifier plug or connect the AC supply directly to the bare coil terminals.
Features
- Available for CETOP 3 and CETOP 5 hydraulic valves
- 12VDC, 24VDC, 110VAC and 240VAC options
- Matching DIN plug with LED indicator included with every coil
- 110VAC and 240VAC models include the required rectifier-type LED DIN plug
- Designed for hydraulic directional control valves
- Quick and straightforward replacement
- Durable moulded coil construction
- Suitable for industrial, mobile and agricultural hydraulic systems
- Ideal for repairs, maintenance and spare-parts stock
Technical Specifications
| Specification | CETOP 3 | CETOP 5 |
|---|---|---|
| Supply Voltage Options | 12VDC, 24VDC, 110VAC or 240VAC | 12VDC, 24VDC, 110VAC or 240VAC |
| Coil Bore Diameter | 23.5mm | 31.8mm |
| Coil Length | 50.7mm | 75.2mm |
| Electrical Connection | DIN Plug Connection | DIN Plug Connection |
| DIN Plug | LED DIN Plug Included | LED DIN Plug Included |
| AC Version Connection | Matched Rectifier LED DIN Plug Included | Matched Rectifier LED DIN Plug Included |
| Valve Type | CETOP 3 Directional Valve | CETOP 5 Directional Valve |
| Product Type | Replacement Solenoid Coil | Replacement Solenoid Coil |
Common Applications
- Hydraulic power units
- Industrial hydraulic machinery
- Hydraulic presses
- Manufacturing equipment
- Food-processing machinery
- Conveyors and material-handling systems
- Agricultural machinery
- Mobile plant and equipment
- Directional control valve assemblies
- Hydraulic service and breakdown repairs
Compatibility Information
Please confirm the required valve size, supply voltage, coil bore diameter, coil length and connector style before ordering.
CETOP valve size alone does not guarantee compatibility. Different valve manufacturers may use different armature tube diameters, coil lengths and retaining arrangements. Compare the dimensions of your existing coil with the specifications shown above before purchase.
Voltage Selection
Select the coil voltage that matches the electrical control supply of the machine or hydraulic power unit.
- 12VDC – Common in mobile equipment, trailers, vehicles and compact hydraulic power packs. Includes matching LED DIN plug.
- 24VDC – Common in industrial control systems, mobile machinery and hydraulic power units. Includes matching LED DIN plug.
- 110VAC – For 110VAC control supplies used in selected industrial machinery. Includes the required matched rectifier DIN plug with LED indicator.
- 240VAC – For 220–240VAC control supplies commonly found in Australian industrial machinery and hydraulic power units. Includes the required matched rectifier DIN plug with LED indicator.
Important for AC versions: The AC electrical supply is connected through the supplied rectifier DIN plug. The rectifier plug is part of the operating circuit and must remain paired with the AC coil. Do not apply 110VAC or 220–240VAC directly to the bare AC coil terminals.
The voltage options are not interchangeable. Applying an incorrect supply voltage or using an incorrect DIN plug may damage the coil or prevent the valve from operating correctly.
DIN Plug Information
All voltage options include a matching DIN plug with LED indicator.
12VDC and 24VDC versions: Supplied with a matching DC DIN plug with LED indicator.
110VAC and 240VAC versions: Supplied with a matching rectifier DIN plug with LED indicator. The rectifier plug forms part of the AC coil electrical circuit and must be used with the supplied AC coil.
Important: Do not substitute the supplied AC rectifier plug with a standard DIN plug or connect the AC electrical supply directly to the bare AC coil terminals.
Installation Information
- Isolate the electrical supply before installation.
- Depressurise the hydraulic system before carrying out valve repairs.
- Confirm the correct coil and supply voltage before connecting power.
- Use the matching DIN plug supplied with the selected coil.
- For 110VAC and 240VAC versions, use only the matched rectifier DIN plug supplied with the coil.
- Do not connect the AC supply directly to the bare AC coil terminals.
- Fit the coil fully over the valve armature tube before operation.
- Do not energise the coil while it is removed from the armature tube.
- Secure the retaining nut without overtightening.
- Ensure the DIN plug gasket and cable entry are correctly fitted and sealed.
- AC mains wiring should be completed by a suitably qualified person in accordance with applicable electrical requirements.
Package Includes
- 1 x Hydraulic Konnect replacement solenoid coil in the selected size and voltage
- 1 x matching DIN plug with LED indicator
Note: 110VAC and 240VAC models include the required rectifier-type DIN plug. Keep the supplied rectifier plug paired with its AC coil.
Why Choose Hydraulic Konnect?
Hydraulic Konnect supplies hydraulic and fluid power components backed by local Australian support, fast dispatch and practical hydraulic industry knowledge.
Hydraulic Konnect – Built for Pressure.
